| Place of Origin: | China suzhou |
|---|---|
| Brand Name: | Langji |
| Certification: | CE/ISO14001/ISO9001/3C/SGS |
| Model Number: | LAJ-WM850 |
| Minimum Order Quantity: | 1 |
| Price: | $ 50-300 set |
| Packaging Details: | wooden pallet+Wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | Western Union |
| Supply Ability: | 100000 sets per Year |
| Product Name: | Outdoor Telecom Cabinet | Material: | Galvanized Steel |
|---|---|---|---|
| Type: | Wall Mounted Cabinet | Color: | RAL7035 GREY |
| Size: | We Can Customize As Your Request | Application: | Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom |
| Surface: | Plating | Weight: | 65kg |
| High Light: | SPCC Wall Mounted Telecom Cabinet,SGS Wall Mounted Telecom Cabinet,SPCC outdoor 19 rack enclosure |
||
Manufacturer 16U IP45 IP55 IP65 Outdoor Computer Enclosure Wall Mounted Cabinet 19 Inch Outdoor enclosure
Suzhou Langji Technology Co., Ltd. was founded in 2009, it is a high-tech enterprise with R&D, manufacturing and sales department. It is located at the coast of Taihu Lake Suzhou city, the registered capital is 50 million RMB. The whole factory covers 5000 square meters and employs about 200 people with an annual sale of nearly 100 million RMB.
1. Technical Data Sheet
1.1 Structure
Internal Dimension(H*W*D) :Standard 16U *600*600mm or any customized size
External Dimension(H*W*D) : Standard 850*650*650mm or any customized size
1.2 Material:Galvanized steel
1.3 Layout : one compartment equipment cabinet
1.4 Door : one door with 3 point security lock for outdoor cabinet (support padlock)
1.5 Cable enter method :Bottom φ50*5 or customer requirement.
1.6 Temperature Control Cooling :48VDC high speed Fan
2. Available dimension and material
Width available:300mm,350mm,400mm,450mm,500mm,550mm,600mm or any customized size
Depth available:300mm,350mm,400mm,450mm,500mm,550mm,600mm or any customized size
Internal capacity: 6U,9U ,10U,12U,14U,16U,18U,20U, etc (based on customers requirements)
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
|
Accessory List(options)
|
||
| No. | Item | Specifications |
| 1 | Fan | DC48V, START WORK AT 35°C |
| 2 | Power Distribution (PDU) | GRADE B LIGHTNING PROOF AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4; DC OUTPUT: 16A/1P*4 or customer requirement |
| 3 | Environment Monitoring Unit | 48VDCCommunication port: RS485, TCP/IP, SNMP optional |
| 4 | Door Sensor | Monitor door open status inside cabinet and provide real time alarm. |
| 5 | Water Sensor | Monitor water status inside cabinet and provide real time alarm. |
| 6 | Tilt & Shock Sensor | Monitor shock status inside cabinet and provide real time alarm. |
| 7 | Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real time alarm. |
| 8 | Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. |
| 9 | Ground Bar | Resistance value: 0.021Ω |
| 10 | Built-in power supply | 150A/200A/300A |
| 11 | Packaging | Wooden case/Export pallet |
| Cooling System(Optional) | ||
| No. | Item | Specifications |
| 1 | Air Conditioner | AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w, 1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w |
| 2 | Heat Exchanger | AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k |
| 3 | Thermoelectric Cooler (TEC) | DC48V, Cooling capacity 200w, 300w |
| 4 | Fan | DC48V |

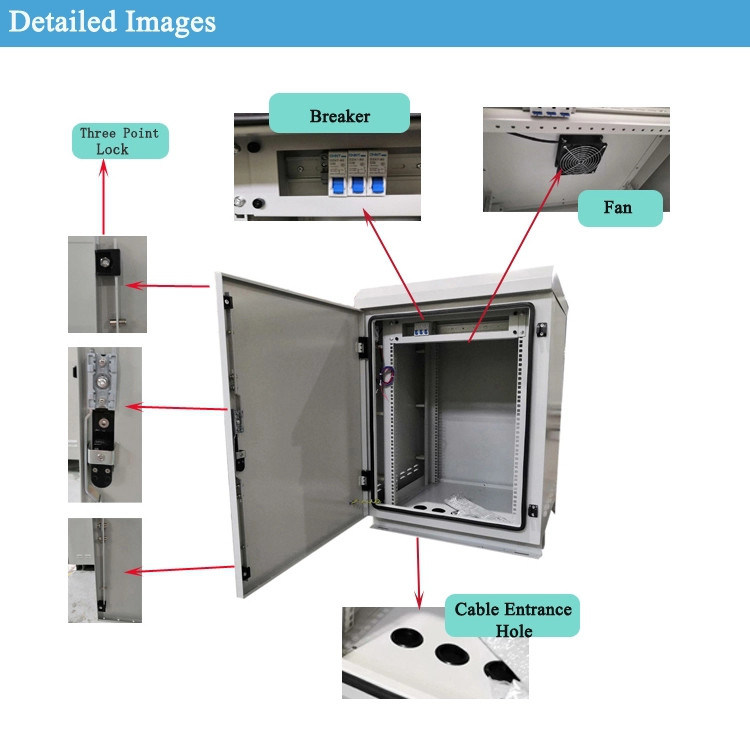

3. Detailed Picture
1. Optional Cable Entry on Top & Bottom, Removable Front&Rear Door and Side Panel Facility, Ventilation and Rat-Prevention on the Bottom.
2. Varies Optional Accessories, Reliable Quality.
3. Optional Opening Hole and Varies Specification upon Customers Special Requirements.
4. Degreasing, Pickling, Phosphoric, Power Coated surface finish.
5. High Quality SPCC Cold Rolled Steel.
