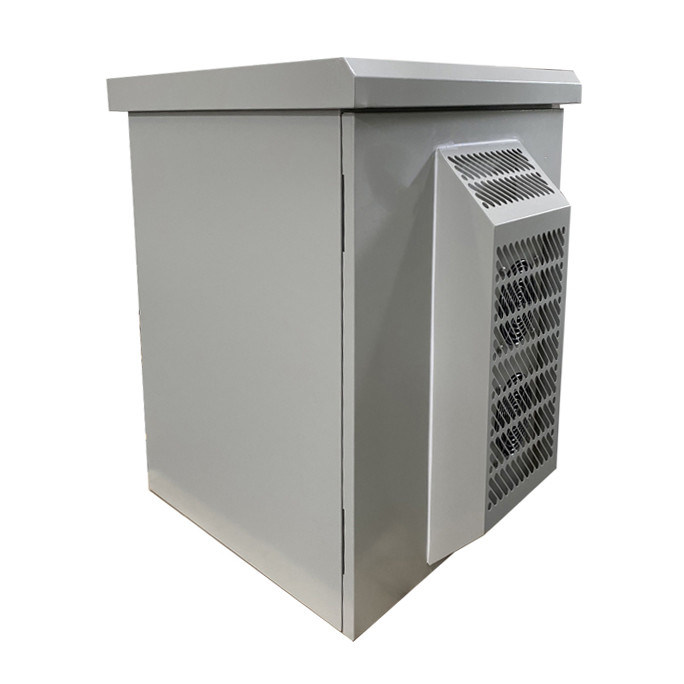

48VDC High Speed Fan Wall Mounted Telecom Cabinet

Basic Information
Place of Origin: China suzhou
Brand Name: Langji
Certification: CE/ISO14001/ISO9001/3C/SGS
Model Number: LAJ-WM850
Minimum Order Quantity: 1
Price: $ 50-300 set
Packaging Details: wooden pallet+Wooden case
Delivery Time: 10-15 working days
Payment Terms: Western Union
Supply Ability: 100000 sets per Year
Protection Level: IP55 / IP65/NEMA External Size: 650mm*650mm*850mm(W*D*H)
Color: RAL7035 GREY Size: We Can Customize As Your Request
Application: Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom Cooling System: 48vdc High Speed Fan
Warranty: 1 Year Surface: Plating
Weight: 65kg Surface Finish: Powder Coating
High Light:

IP55 Wall Mounted Telecom Cabinet

,

OEM Wall Mounted Telecom Cabinet

,

waterproof outdoor 19 rack cabinet

Manufacturer 16U IP45 IP55 IP65 Outdoor Computer Enclosure Wall Mounted Cabinet 19 Inch Outdoor enclosure



Features



The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
The equipment compartment cooling: fans and air conditioner. (Other cooling option: heat exchanger).
The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
All the cables used in the cabinet are made from flame retardant materials.



1. Technical Data Sheet

1.1 Structure
Internal Dimension(H*W*D) :Standard 16U *600*600mm or any customized size
External Dimension(H*W*D) : Standard 850*650*650mm or any customized size

1.2 Material:Galvanized steel

1.3 Layout : one compartment equipment cabinet

1.4 Door : one door with 3 point security lock for outdoor cabinet (support padlock)

1.5 Cable enter method :Bottom φ50*5 or customer requirement.

1.6 Temperature Control Cooling :48VDC high speed Fan



2. Available dimension and material

Width available:300mm,350mm,400mm,450mm,500mm,550mm,600mm or any customized size
Depth available:
300
mm,350mm,400mm,450mm,500mm,550mm,600mm or any customized size
Internal capacity: 6U,9U ,10U,12U,14U,16U,18U,20U, etc (based on customers requirements)

Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)





Accessory List(options)
No. Item Specifications
1 Fan DC48V, START WORK AT 35°C
2 Power Distribution (PDU) GRADE B LIGHTNING PROOF
AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4;
DC OUTPUT: 16A/1P*4 or customer requirement
3 Environment Monitoring Unit 48VDCCommunication port: RS485, TCP/IP, SNMP optional
4 Door Sensor Monitor door open status inside cabinet and provide real time alarm.
5 Water Sensor Monitor water status inside cabinet and provide real time alarm.
6 Tilt & Shock Sensor Monitor shock status inside cabinet and provide real time alarm.
7 Temperature & Humidity Sensor Monitor temperature and humidity inside cabinet and provide real time alarm.
8 Smoke Sensor Monitor smoke status inside cabinet and provide real time alarm.
9 Ground Bar Resistance value: 0.021Ω
10 Built-in power supply 150A/200A/300A
11 Packaging Wooden case/Export pallet



Cooling System(Optional)
No. Item Specifications
1 Air Conditioner AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w, 1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w
2 Heat Exchanger AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k
3 Thermoelectric Cooler (TEC) DC48V, Cooling capacity 200w, 300w
4 Fan DC48V

48VDC High Speed Fan Wall Mounted Telecom Cabinet 0

48VDC High Speed Fan Wall Mounted Telecom Cabinet 1

3. Detailed Picture

48VDC High Speed Fan Wall Mounted Telecom Cabinet 2

4. Company profile



48VDC High Speed Fan Wall Mounted Telecom Cabinet 3

48VDC High Speed Fan Wall Mounted Telecom Cabinet 4


Langji Technology Co., Ltd. was founded in 2009, it is a high-tech enterprise with R&D, manufacturing and sales department. It is ocated at the coast of Taihu Lake Suzhou city, the registered capital is 50 million RMB. The whole factory covers 5000 square meters and employs about 200 people with an annual sale of nearly 100 million RMB.

Langji company provides full range of temperature control products and solutions for
- Telecommunication
- Data Center
- Base station
- Solar based installations
- Wireless cell sides & switches
- Industry Automation
- Energy Storage


5. Pantents

48VDC High Speed Fan Wall Mounted Telecom Cabinet 5

6. Packaging

48VDC High Speed Fan Wall Mounted Telecom Cabinet 6
