| Place of Origin: | China |
|---|---|
| Brand Name: | Langji |
| Certification: | CE |
| Model Number: | SNY105-1 |
| Minimum Order Quantity: | 1 |
| Price: | USD 180-300 |
| Packaging Details: | Carton box |
| Delivery Time: | 20-25 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram,Paypal |
| Supply Ability: | 10000 pcs per month |
| Product Name: | CNC Cabinet Air Cooler | IP Grade: | IP34 |
|---|---|---|---|
| Color: | RAL7035 Grey Or Custom | Operating Temperature: | 0 ℃-45 ℃ |
| Net Weight: | 18kg | Refrigerant: | R134A |
| Power Supply: | AC 220V 50HZ | Dimension W*D*H: | 287x185x500mm |
| Warranty: | 1 Year | Application: | CNC Machine, Data Center, Communications And Etc |
| High Light: | CE CNC cabinet air cooler,Electrical cabinet air cooler,500W CNC air conditioner |
||

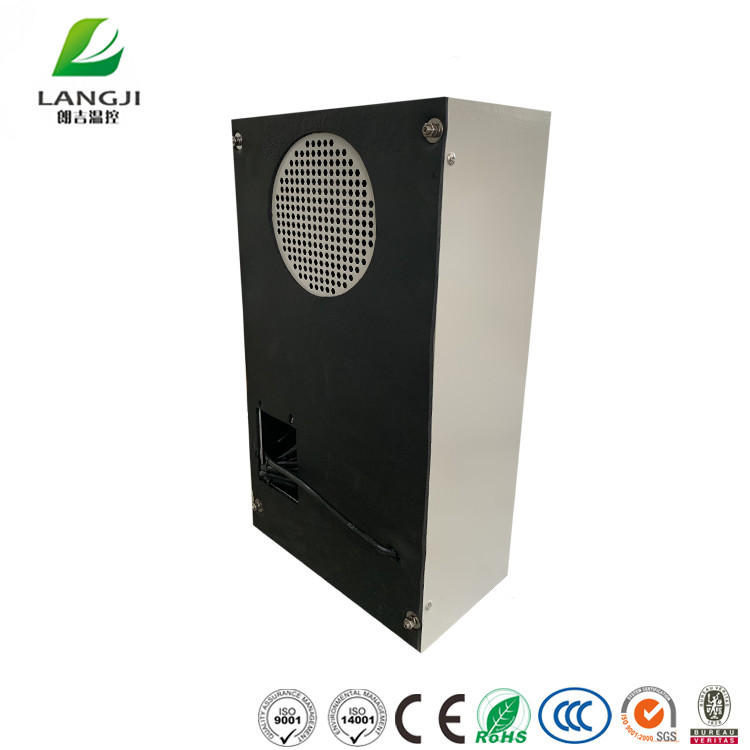

Energy saving industrial electrical CNC Cabinet Air Cooler
Product advantages
1. The CNC cabinet air conditioner is made of all kinds of high-quality components, the main components are all of well-known brands at home and abroad. For example, the brand of compressor is Shanghai Hitachi,the fan is EBM.
2. The main components have passed CE certification and meet the requirements of EU RoHs.
3. Reasonable air intake and return air structure avoid short circuit caused by air circulation in the cabinet;
4. Small size, light weight, extremely convenient to install, use and maintain.
Data Sheet
| Model | SNY105-1 |
|
Cooling capacity(L35/L35) |
500W |
| Voltage |
AC 220V 50HZ |
|
Input Power(L35/L35) |
340W |
| Rated Current | 1.72A |
| Circuit max pressure |
26bar |
| Color | RAL7035 or custom |
| Material | Galvanized steel |
| Refrigerant gas | R134A |
| Cabinet air volume | 150m³/h |
| Working temperature |
-5～45℃ |
| Noise |
55dB |
| Net Weight |
18Kg |
| IP Grade |
IP34 |
| Dimension(W×D×H) |
287x185x500mm |
