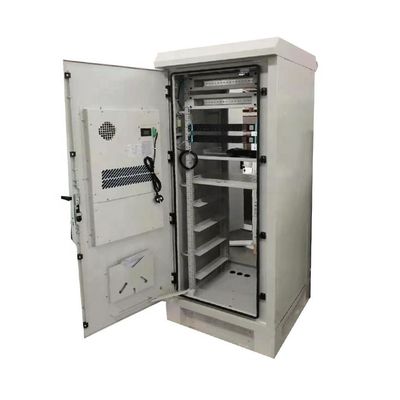

2.1m Outdoor Telecommunication Cabinet With 800W Power Supply System

With 800W Power Supply System 2100mm Outdoor Telecommunication Cabinet

Structure

Galvanized steel base
Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
IP55 cabinet, walls and roof in double steel with high quality insulation
Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
High performance Air-conditioning unit for heat removal
Door stopper to hold door open at service
Pass earthquake intensity 8 anti-seismic performance test

External Dimension(H*W*D) : Standard 2100*900*900mm or any customized size
Width awailable:600mm,650mm,700mm,750mm,800mm,850mm,900mm or any customized size
Depth awailable:600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1000mm or any customized size
Internal capacity: 18U,22U ,27U,30U,32U,35U,37U,40U,42U etc (based on customers requirements)
Layout :1 compartment for and equipment cabinet
Door :With one front door, with special lock for outdoor cabinet (support padlock)
Hinge :Embedded
Material: Material left ,right and back part are color steel plate,other parts are Galvanization plate ,insulation thickness 45mm,insulation material is EPS.
Thermal insulation performance:Thermal Conductivity<0.472W/(m2.k)
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
Structure : Assembly
Cable enter method :Bottom φ50*5 or customer requirement.
Color :RAL7035/Pantone428C, powder coating finish
Equipment Installation Method:19" rack
Ingress Protection: IP55
Noise Level :60-65dB
Temperature Control Cooling :800w 220VAC air conditioner
way of communication:RS485

- Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other attachments.
- Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
- Can be installed in any difficult places include the top of mountain and the roof of buildings.
- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
- Support custom-made.
