|Place of Origin:||China|
|Model Number:||Telecommunication Cabinet|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Wooden box on export pallet or according to customer requirements|
|Payment Terms:||T/T, L/C|
|Supply Ability:||2000 Unit/Units per Month|
|Features:||Long Working Life, Waterproof||Application:||Telecommunication|
|Dimensions:||Standard Or Customized||Material:||Galvanized Steel Etc|
|Cooling System:||AC/TEC/Hex||Color:||RAL7035 Or Customized|
Windproof Telecommunication Cabinet,
OEM Telecommunication Cabinet,
19 Inch IP55 Rack Cabinet

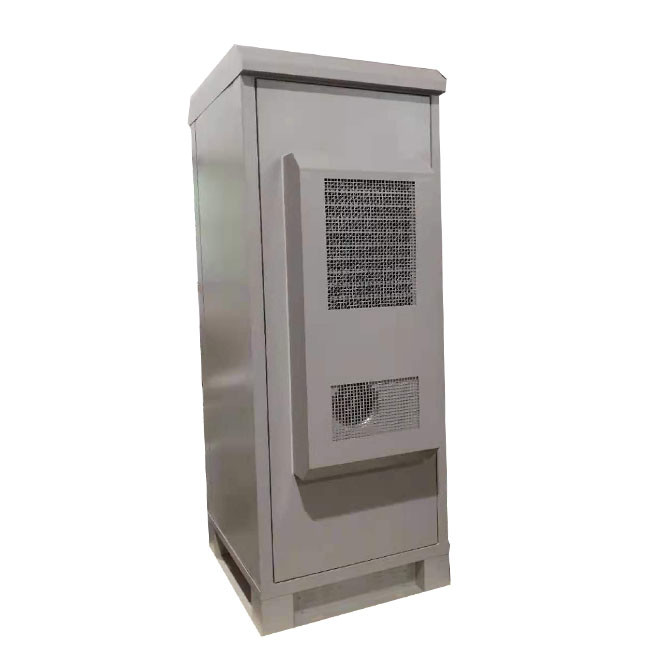

IP55 Customized Waterproof Outdoor 19inch Rack Telecommunication Cabinet
- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
- Can be installed in any difficult places include the top of mountain and the roof of buildings.
- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
- Support custom-made.
- Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other attachments.
- Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
External Dimension(W*D*H) : Standard 2200mm*550mm*550mm
Internal Capacity: 15U,18U,22U,24U,27U 30U,32U,35U,37U,40U,42U,44U etc (based on customers requirements)
Layout : 2 compartments
Door :With two doors, with special lock for outdoor cabinet (support padlock)
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
Structure : welding 19 inch
Cable enter method :Bottom φ50*5 or customer requirement.
Color :RAL7035/Pantone428C, powder coating finish
Equipment Installation Method:19" rack
Ingress Protection: IP55
Noise Level :60-65dB
Temperature Control Cooling :DC48V fans
Lighting :LED lamp
48V LED lamps, it will turn on when the door is opened; it will turn off when the door is closed.
