| Place of Origin: | China |
|---|---|
| Brand Name: | Langji |
| Certification: | ISO9001, ISO14001 CE,3C,IP55 |
| Model Number: | OBC1800 |
| Minimum Order Quantity: | 1 |
| Price: | $ 300-1000 set |
| Packaging Details: | wooden pallet+Wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | Western Union |
| Supply Ability: | 100000 sets per Year |
| Material: | Galvanized Steel | Color: | RAL7035 GREY |
|---|---|---|---|
| Application: | Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom | Warranty: | 1 Year |
| Surface Finish: | Powder Coating | Type: | Outdoor Cabinet |
| High Light: | Grey outdoor power supply enclosure,Langji outdoor power supply enclosure,RAL7035 outdoor battery cabinets |
||
Factory supply waterproof outdoor telecom solar battery storage power supply cabinet
Technical Data
1.1 Structure
External Dimension(H*W*D) : Standard 1800*900*900mm or any customized size
1.2 Material:Materials are Galvanization plate with 45mm thickness EPS insulation
1.3 Layout :4 Layers battery compartment
1.4 Door :two doors, 4 point security lock outdoor cabinet (support padlock)
1.5 Cable enter method :Bottom φ50*5 or customer requirement.
1.7 Temperature Control Cooling :600W 48VDC air conditioner
1.8 way of communication:RS485
1.9 working temperature:-40℃~+55℃
2. Available dimension and material
Width available:600mm,650mm,700mm,750mm,800mm,850mm,900mm or any customized size
Depth available:600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1000mm or any customized size
Height: 1000mm.1400mm 1600mm 2000mm etc (based on customers requirements)
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
|
Accessory List(options)
|
||
| No. | Item | Specifications |
| 1 | Fan | DC48V, START WORK AT 35°C |
| 2 | Power Distribution (PDU) | GRADE B LIGHTNING PROOF AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4; DC OUTPUT: 16A/1P*4 or customer requirement |
| 3 | Environment Monitoring Unit | 48VDCCommunication port: RS485, TCP/IP, SNMP optional |
| 4 | Door Sensor | Monitor door open status inside cabinet and provide real time alarm. |
| 5 | Water Sensor | Monitor water status inside cabinet and provide real time alarm. |
| 6 | Tilt & Shock Sensor | Monitor shock status inside cabinet and provide real time alarm. |
| 7 | Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real time alarm. |
| 8 | Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. |
| 9 | Ground Bar | Resistance value: 0.021Ω |
| 10 | Built-in power supply | 150A/200A/300A |
| 11 | Packaging | Wooden case/Export pallet |
| Cooling System(Optional) | ||
| No. | Item | Specifications |
| 1 | Air Conditioner | AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w, 1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w |
| 2 | Heat Exchanger | AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k |
| 3 | Thermoelectric Cooler (TEC) | DC48V, Cooling capacity 200w, 300w |
| 4 | Fan | DC48V |

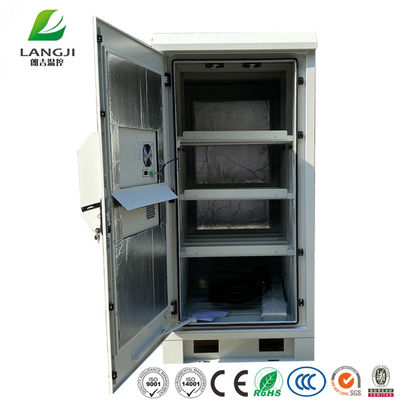

Detailed Picture
