48V DC Telecom Air Conditioner For Outdoor Cabinet Solar Powered

Basic Information
Place of Origin: China
Brand Name: Langji
Certification: ISO9001, ISO14001 CE, 3C, IP55
Model Number: SDC120-1
Minimum Order Quantity: 1 pc
Price: USD 200~600/unit
Packaging Details: Wooden case with pallet or just export pallet
Delivery Time: 15~25 working days
Payment Terms: T/T, Western Union, L/C,PayPal
Supply Ability: 5000 pcs / month
Mounting: Side Mounting ,Door Mounting After-sales Service Provided: Online Support
Operating Voltage: 48V DC Application: Telecommunication
Warranty: 1 Year Cooling Capacity: 300W~2500W
Function: Temperature Controling Condition: New
High Light:

48VDC telecom air conditioner

,

SDC120-1 telecom air conditioner

,

Langji ISO14001 48v dc air conditioner

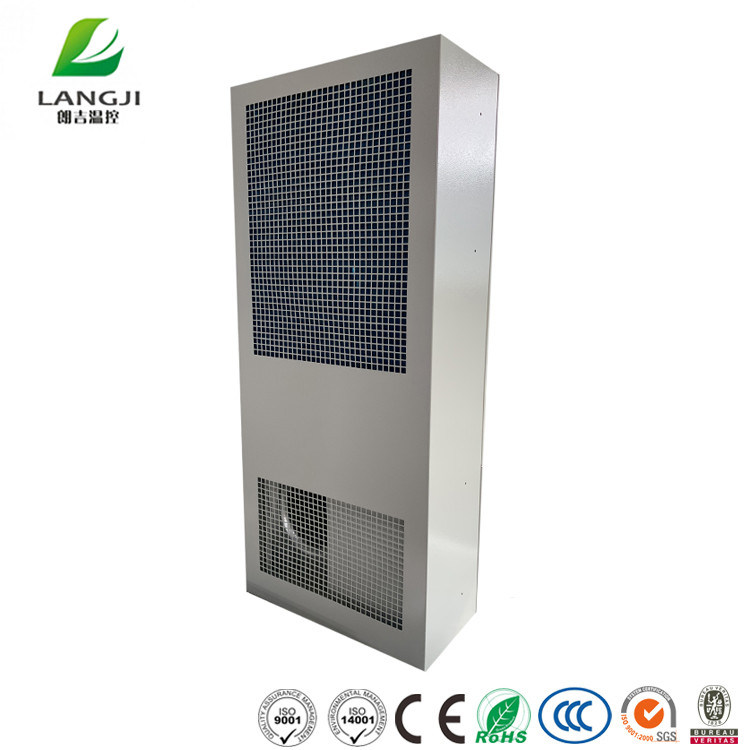

48V DC telecom air conditioner for outdoor cabinet/48V dc solar powered air conditioner



Cabinet air condition is actively cooling with compressor, and it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.

  1. Compact structure, reasonable design and easy maintenance;
  2. Cooling capacity ranges from 300W to 2000W.
  3. Widely used for outdoor telecom cabinets, battery cabinets, electric cabinets and industry control cabinets etc.
  4. The protective level is IP55, can run at high ambient environment 55ºC.
  5. Voltage range: AC220v, 50Hz/60Hz; AC110v, 60Hz; DC-48V.
  6. Mounting: door, side and top mounted available.
  7. The refrigerant is R134a.The compressors are highly and panasonic.
  8. CE certified, which can meet EU RoHS requirements.

Langji DC air conditioner Technical Data Sheet

Model SDC103-1 SDC104-1 SDC105-1 SDC106-1
Cooling capacity(L35/L35) 300W/1000BTU 400W/1350BTU 500W/1700BTU 600W/2000BTU
Voltage DC48V
Power Consumption(L35/L35) 130W 170W 215W 240W
Circuit max pressure 26bar
Refrigerant R134a
Working temperature -40~55ºC
Noise 55dB 56dB 56dB 58dB
Weight 16Kg 16Kg 18Kg 23Kg
Dimension(W×D×H) 353x165x583mm 455x155x692mm
Model SDC108-1 SDC110-1 SDC112-1 SDC115-1 SDC120-1
Cooling capacity(L35/L35) 800W/2700BTU 1000W/3400BTU 1200W/4000BTU 1500W/5000BTU 2000W/6800BTU
Voltage DC48V
Power Consumption(L35/L35) 260W 280W 320W 395W 520W
Power Consumption(L35/L55) 320W 380W 420W 490W 630W
Circuit max pressure 26bar
Refrigerant R134a
Working temperature -40~55ºC
Noise 55dB 56dB 58dB 63dB 68dB
Weight 16Kg 36Kg 38Kg 38Kg 45Kg
Dimension(W×D×H) 455x155x692mm 470x187x772mm 499x288x1099mm



Product Application

The finished product is mainly used for cooling and dehumidifying the air in various electrical cabinets to ensure the safe and reliable operation of the electrical components and extend the service life of the electrical components. Applicable to all kinds of control boxes, electrical cabinets and other similar electrical devices with high temperature and humidity requirements in machinery, automobile, power, light industry, instrumentation, textile, casting, surface treatment and other industries, such as machine tool electrical cabinets, comprehensive processing Center, communication equipment, etc.

48V DC Telecom Air Conditioner For Outdoor Cabinet Solar Powered 0



Outdoor Telecommunication Cabinet is mainly used for wireless communication base station, including the new generation of 4G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission, etc.
