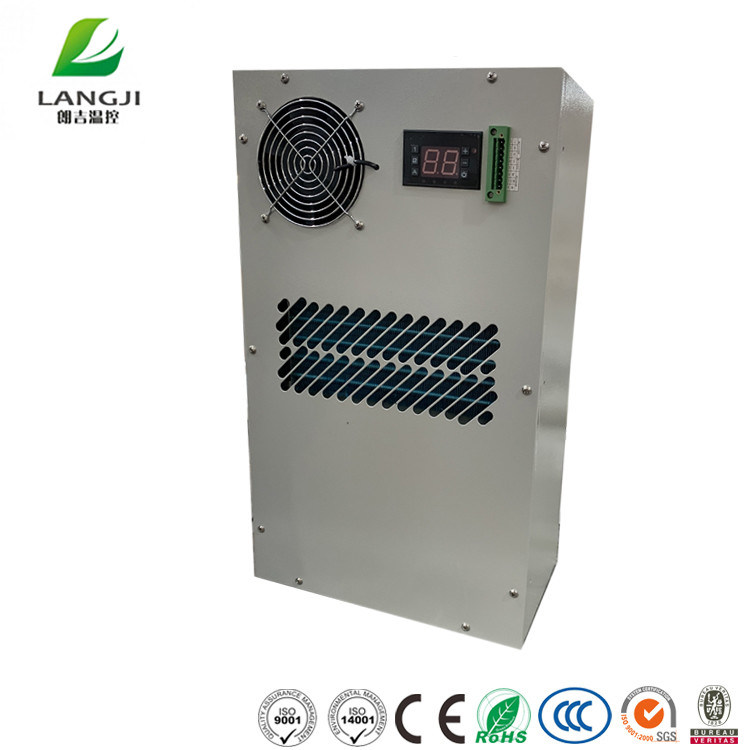

400W Portable AC DC Industrial Cabinet Air Conditioner

Basic Information
Place of Origin: China
Brand Name: Langji
Certification: ISO9001, ISO14001 CE, 3C, IP55
Model Number: SAD104-2
Minimum Order Quantity: 1 pc
Price: USD 100~250/unit
Packaging Details: Wooden case with pallet or just export pallet
Delivery Time: 15~25 working days
Payment Terms: T/T, Western Union, L/C,PayPal
Supply Ability: 5000 pcs / month
Mounting: Door,Side And Top Mounted Certification: ISO, CE, CCC
Trademark: Langji Specification: 583x353x165mm
Lifetime: 10~15 Years Condition: New
Transport Package: Wooden Case
High Light:

400W Cabinet Air Conditioner

,

Portable Cabinet Air Conditioner

,

CCC air cooler cabinet

400W Portable AC DC Industrial Cabinet Air Conditioner Air Cooler



Product Description



Cabinet air condition is actively cooling with compressor, and it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.

  1. Compact structure, reasonable design and easy maintenance;
  2. Cooling capacity ranges from 300W to 5000W.
  3. Widely used for outdoor telecom cabinets, battery cabinets, electric cabinets and industry control cabinets etc.
  4. The protective level is IP55, can run at high ambient environment 55ºC.
  5. Voltage range: AC220v, 50Hz/60Hz; AC110v, 60Hz; DC-48V.
  6. Mounting: door, side and top mounted available.
  7. Digital temperature controller and high precision of temperature control.
  8. The refrigerant is R134a.The compressors are highly and panasonic.
  9. CE certified, which can meet EU RoHS requirements.

Langji AC air conditioner Technical Data Sheet

Model SAD103-2 SAD104-2 SAD105-2 SAD106-2 SAD108-2 SAD110-2
Cooling capacity
(L35/L35)
300W/1000BTU 400W/1350BTU 500W/1700BTU 600W/2000BTU 800W/2700BTU 1000W/3400BTU
Rated Power
(L35/L35) (W)
220 240 320 365 460 490
Rated current (A) 1.25 1.30 1.50 1.63 1.86 1.93
Voltage 220V AC ± 15% 50Hz/60Hz
Refrigerant R134a
Working temperature -40~55ºC
Noise (dB) 55 55 55 56 58 60
Weight 16Kg 16Kg 16Kg 21Kg 21Kg 32Kg
Dimension
((H×W×D) (mm)
353×165×583mm 455×155×692mm 482×187×781mm



400W Installation Drawing
Industrial 400W IP55 220/230 VAC 48VDC Air Conditioner for Telecom Cabinet Cooling



Packing & Delivery
Industrial 400W IP55 220/230 VAC 48VDC Air Conditioner for Telecom Cabinet Cooling



Company Profile

Industrial 400W IP55 220/230 VAC 48VDC Air Conditioner for Telecom Cabinet Cooling Industrial 400W IP55 220/230 VAC 48VDC Air Conditioner for Telecom Cabinet Cooling
Industrial 400W IP55 220/230 VAC 48VDC Air Conditioner for Telecom Cabinet Cooling Industrial 400W IP55 220/230 VAC 48VDC Air Conditioner for Telecom Cabinet Cooling



Langji Technology Co., Ltd. was founded in 2009, it is a high-tech enterprise with R&D, manufacturing and sales department. It is located at the coast of Taihu Lake Suzhou city, the registered capital is 50 million RMB. The whole factory covers 5000 square meters and employs about 200 people with an annual sale of nearly 100 million RMB.

Langji company provides full range of temperature control products and solutions for
- Telecommunication
- Data Center
- Base station
- Solar based installations
- Wireless cell sides & switches
- Industry Automation
- Energy Storage
