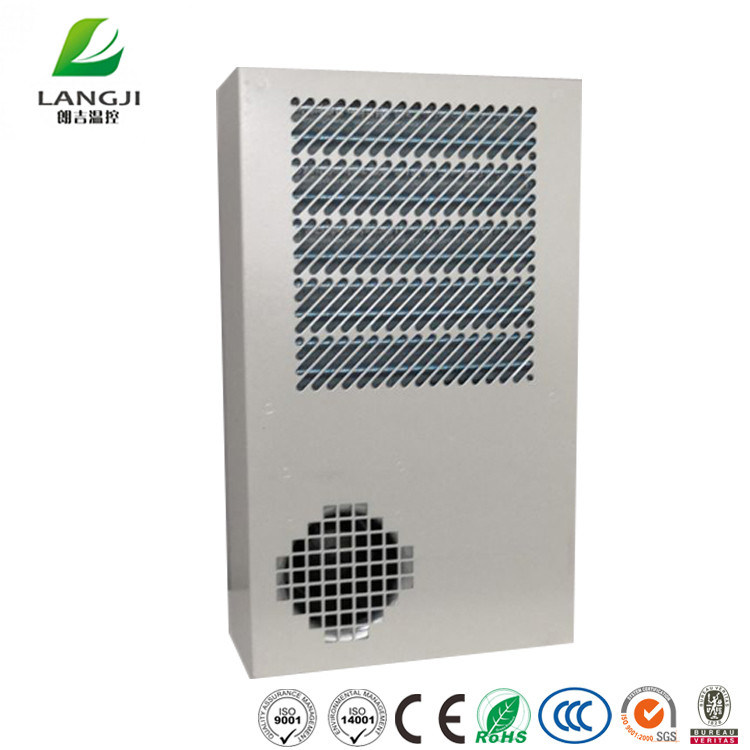

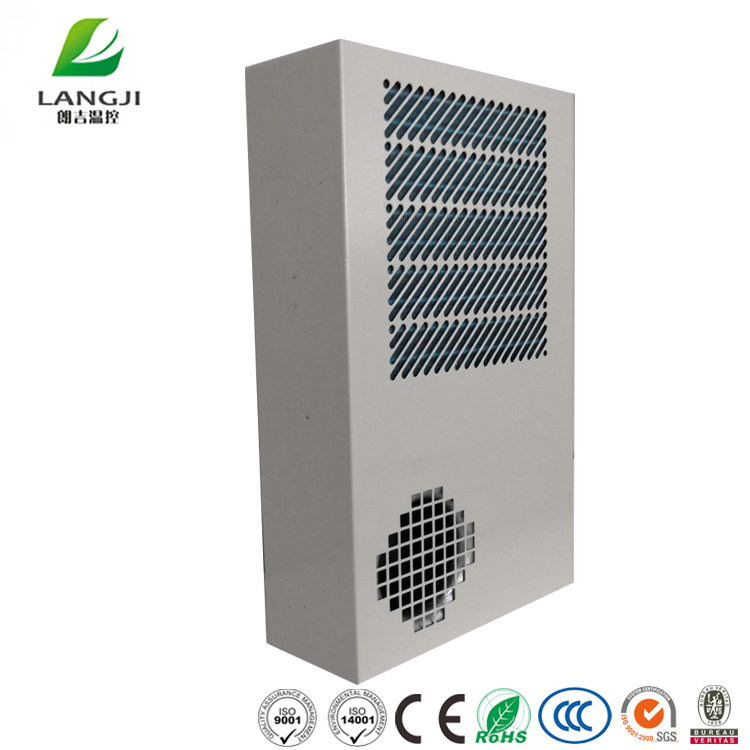

Compact 300W AC Electrical Enclosure Air Conditioner

300W AC Air Conditioner for Electrical Cabinet Cooling

Cabinet air condition is actively cooling with compressor, and it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.

1. Compact structure, reasonable design and easy maintenance;
2. Cooling capacity ranges from 300W to 5000W.
3. Widely used for outdoor telecom cabinets, battery cabinets, electric cabinets and industry control cabinets etc.
4. The protective level is IP55, can run at high ambient environment 55ºC.
5. Voltage range: AC220v, 50Hz/60Hz; AC110v, 60Hz; DC-48V.
6. Mounting: door, side and top mounted available.
7. Digital temperature controller and high precision of temperature control.
8. The refrigerant is R134a. The compressors are highly and panasonic.
9. CE certified, which can meet EU RoHS requirements.

Langji AC air conditioner Technical Data Sheet

300W Installation Drawing
