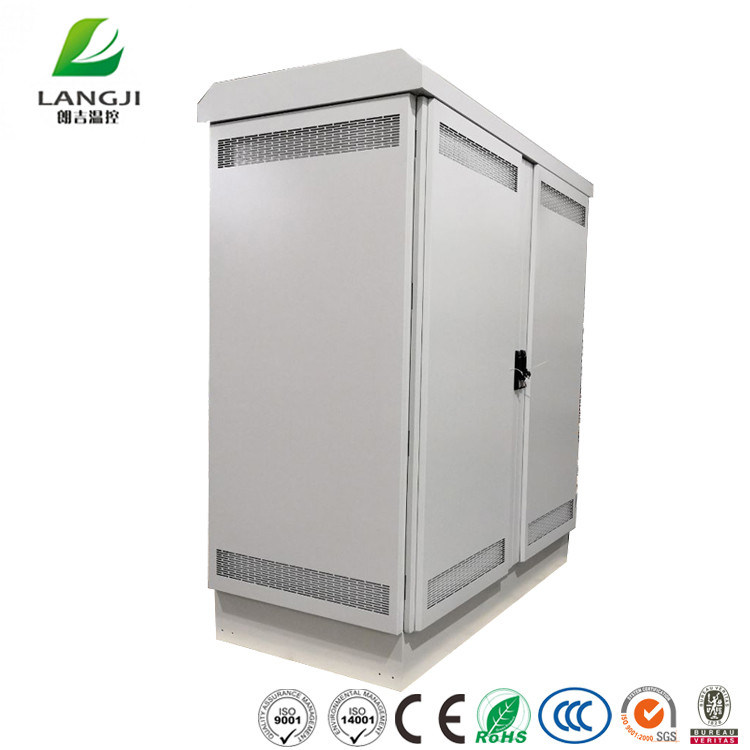

Large Size Heat Insulated Outdoor Telecom Cabinet

Basic Information
Place of Origin: China
Brand Name: Langji
Certification: ISO9001, ISO14001 CE, 3C, IP55
Model Number: OEC2100-2
Minimum Order Quantity: 1 pc
Price: USD 500~1000/unit
Packaging Details: Wooden case with pallet or just export pallet
Delivery Time: 15~25 working days
Payment Terms: T/T, Western Union, L/C,PayPal
Supply Ability: 1500 pcs / month
Name: Outdoor Telecommunication Cabinet External Dimension H*W*D: 2100*1900*900mm
Internal Dimension H*W*D: 1800*1800*800mm Surface Finish: RAL7035 Grey Color
Ingress Protection: IP55 Level Warranty: 1 Year
High Light:

2.1m Outdoor Telecom Cabinet

,

ISO 14001 Outdoor Telecom Cabinet

,

ISO14001 RAL7035 outdoor comms cabinet

IP55 Large Size Heat Insulated Telecommunication Outdoor Cabinet



Description



The OEC2100-2 Outdoor telecom double bays equipment cabinet is special designed for telecommunication equipments storage.

Which is widely used in wireless communication base station, such as 4G  5G system, communication/network integrated service, emergency communication/transmission, etc.

The cabinet is made of galvanized steel, The cabinet body has heat insulation foam, which can keep the temperature inside the cabinet. The cabinet also has roof and plinth which is sunproof and waterproof.

The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof four point lock. There’s open door alarm sensor, which works together with the environment monitoring unit.



Protect name Outdoor Telecom Double Bays Cabinet
External dimension H*W*D 2100*1900*900mm
Internal dimension H*W*D 1800*1800*800mm
Material Double walls of galvanized steel,with 50mm EPS heat insulation between the walls.
Surface Finish RAL7035 grey color
Ingress Protection IP55 level
Security design embedded hinges, 4-point security lock
Door Two front doors ,with door stopper
Cable entry method Cable entries in the bottom
Structure Assembled sandwich structure
Layout Two compartments,with 19 inch racks,for telecom equipments storage.
MOQ 1 unit
Warranty 1 Year
Payment T/T,L/C,Western Union,PayPal
Delivery time 15~25 working days



Cabinet Features

The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment. The protection level is IP55.

 -48V LED light  is installed inside the cabinet.

The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.

All the cables used in the cabinet are made from flame retardant materials.



Door and Door Limit

(1) Cabinet door options: vertical hinge door, horizontal hinge door.

(2) The door limit device can limit the door position when it is open.

(3) The door limit function is automatically activated when the door is open, and should be canceled manually when the door is closed
