| Place of Origin: | China |
|---|---|
| Brand Name: | Langji |
| Certification: | ISO9001, ISO14001 CE, 3C, IP55 |
| Model Number: | OIC2100-AC1500 |
| Minimum Order Quantity: | 1 pc |
| Price: | USD 200~500/unit |
| Packaging Details: | Wooden case with pallet or just export pallet |
| Delivery Time: | 15~25 working days |
| Payment Terms: | T/T, Western Union, L/C,PayPal |
| Supply Ability: | 1500 pcs / month |
| Cooling System: | AC/TEC/Hex | Warranty: | 1 Year |
|---|---|---|---|
| Structure: | Front Door | Weight: | 240kg |
| Surface Finish: | Powder Coating | Style: | Air Conditioner Outdoor Cabinet |
| Ip Rating: | IP55 | Form Of Sale: | OEM/ODM |
| High Light: | 40U Outdoor Telecom Cabinet Langji,AC Outdoor Telecom Cabinet,Langji 40U outdoor 19 inch rack cabinet |
||

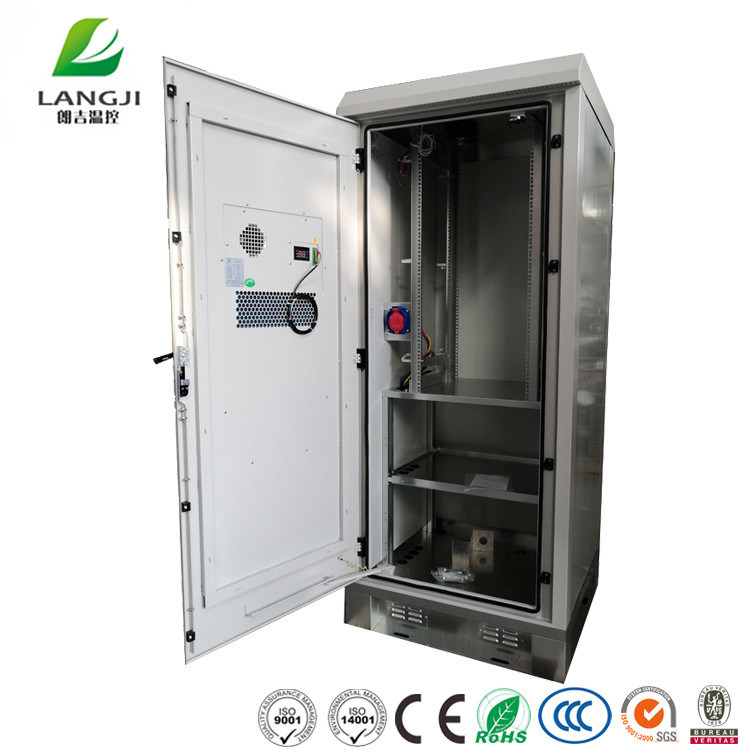

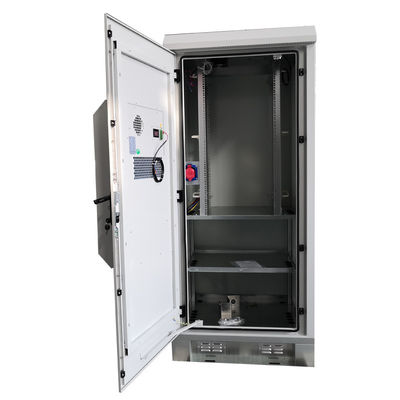

19 Inch Rack IP55 40U Outdoor Integrated Cabinet Telecom Enclosure with AC Air Conditioner
| Protect name | Outdoor Telecom Integrated Cabinet |
| External dimension | H*W*D 2100*1900*900mm |
| Internal dimension | H*W*D 1800*1800*800mm,internal useful space is 40U. |
| Brand name | Langji |
| Material | Double wall 1.0mm thickness galvanized steel,with 50mm Eheat insulation. |
| Surface Finish | Powder coated in RAL7035 grey colour |
| Ingress Protection | IP55 |
| Security design | Embedded door, embedded hinges, 4-point security lock |
| Door | One front door |
| Cable entry method | Cable entries from the bottom of the cabinet |
| Cable management | Plastic cable rings on the side of each 19 inch rail. |
| Grounding protection | Grounding cooper bar |
| Structure | Assembled sandwich structure |
| Layout | Two compartments,upside compartment is for equipments installation,downside compartment is for batteries storage. |
| Equipment Installation Method | 19'' inch or 23'' inch rack |
| Lead acid battery installation Method | One or two Battery shelves on the bottom,each shelf can load 500KG weight. |
| Cabinet cooling | Option 1:AC or DC power cabinet air conditioner Option 2:Heat plate exchanger Option 3:TEC cooler |
| MOQ | 1 unit |
| Warranty | 1 Year |
| Payment | T/T,L/C,Western Union,PayPal |
| Delivery time | 15~25 working days |
Cabinet drawings:
Application:
Our Exhibitions:
