| Place of Origin: | China |
|---|---|
| Brand Name: | Langji |
| Certification: | ISO9001, ISO14001 CE, 3C, IP55 |
| Model Number: | OIC1959 |
| Minimum Order Quantity: | 1 pc |
| Price: | USD 200~500/unit |
| Packaging Details: | Wooden case with pallet or just export pallet |
| Delivery Time: | 15~25 working days |
| Payment Terms: | T/T, Western Union, L/C,PayPal |
| Supply Ability: | 1500 pcs / month |
| Product Name: | IP55 Double Bay Telecom Integrated Power Equipment Aluminum Outdoor Cabinet | Cooling System: | Heat Exchanger 120w/k, DC48V |
|---|---|---|---|
| Structure: | Welded/Frame/Assembly | Material: | Aluminum |
| Color: | RAL7035 | Certification: | ISO9001/ISO14001/CE/IP55 |
| Application: | Telecommunication/Wireless | Workingre Temperatu: | -40～55℃ |
| Warranty: | 1 Year | After Warranty Service: | Video Technical Support,online Support,spare Parts |
| High Light: | Double Bay Outdoor Telecom Cabinet,Integrated Outdoor Telecom Cabinet,Aluminum Outdoor Telecom Cabinet |
||

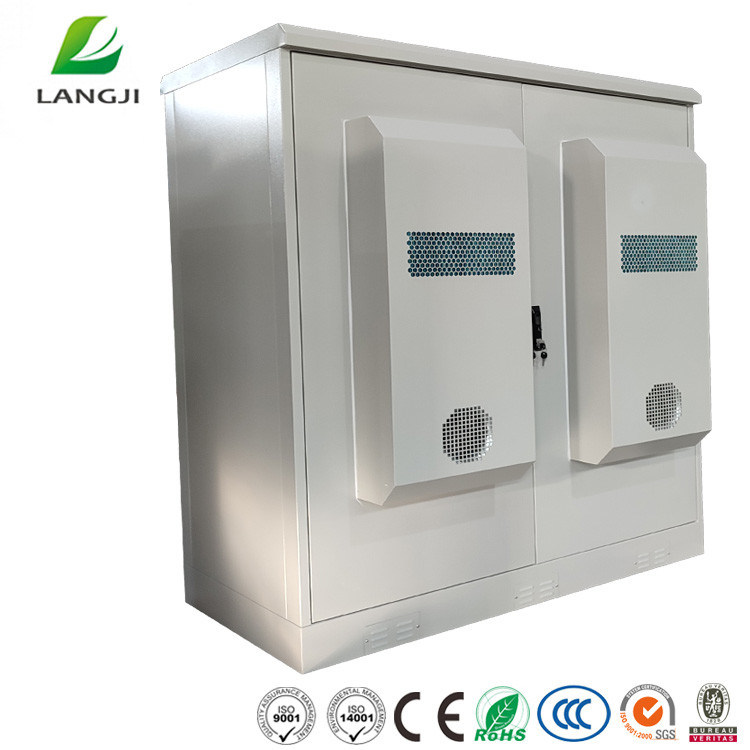

IP55 double bay telecom integrated power equipment aluminum outdoor cabinet
1. Introduction
IP55 double bay telecom integrated power equipment aluminum outdoor cabinet refers to a cabinet made of metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.
Telecom outdoor cabinet is mainly used in wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
2. Specifications
|
Product name |
IP55 double bay telecom integrated power equipment aluminum outdoor cabinet |
|
External Dimension(H*W*D) |
1959*1686*800mm |
|
Internal space |
2 bays, 38U 19"rack,right upper side with 19” rack and the right lower side with batteries shelves |
|
Structure |
Welded/Frame/Assembly |
|
Material |
Aluminium, outer panel 1.5mm, inner panel 1.0mm; Door and base: 2.5mm; Inside rack: 1.5mm gavanized steel |
|
Surface Finish |
Powder coated in RAL7035 grey colour |
|
Ingress Protection |
IP55 |
|
Security design |
Embedded door, embedded hinges, 4-point security lock |
|
Door |
2 front doors, 2 rear doors |
|
Cable entry method |
Cable entries from the bottom of the cabinet |
|
Cable management |
Plastic cable rings on the side of each 19 inch rail. |
|
Grounding protection |
Grounding cooper bar |
|
Equipment Installation Method |
19'' inch rack |
|
Lighting |
48V LED Lamp |
|
Cabinet cooling |
Heat exchanger 120w/k, DC48V for both bays, 4 fans mounted on rooftop in case of cooling system failure. Options: AC or DC power cabinet air conditioner/TEC cooler |
|
MOQ |
1 unit |
|
Warranty |
1 Year |
|
Payment |
T/T,L/C,Western Union,PayPal |
|
Delivery time |
15~25 working days |
3. Product Pictures
4. Our advantages
Langji's IP55 double bay telecom integrated power equipment aluminum outdoor cabinet with heat exchanger is mainly used for wireless communication base station to house a variety of batteries and equipment, including the new generation of 4G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission. It is designed for a variety of applications and can be tailored to fit your specific needs. This cost effective solution has a unique cube design that give flexibility to easily have various heights of cabinets.
Heat exchanger(options: Air conditioner/TEC/Fan) is installed on cabinet for keeping a stable temperature inside cabinet so as to increase service life and stability of battery and equipment. It provide a secure thermally managed environment for backup battery systems for telecommunications and cable applications.
5. Telecom outdoor cabinet features:
1). Sandwich panel construction
2). Attractive powder coat finish
3). 19’’ or 23’’ adjustable rack
4). Anti-theft four-point outdoor cabinet lock,excellent keyhole protection device
5). IP55 cabinet,walls and roof in double steel with high quality insulation
6). High performance heat exchanger for heat removal
7). Door stopper to hold door open at service
8). Pass earthquake intensity 8 anti-seismic performance test
9). Support custom-made
6. Application:
7. Packaging & Shipping:
Our telecom outdoor cabinets are packed in wooden box which is a kind of free fumigated plywood.The advantage is rain proof, moisture-proof, mildew proof, rust proof, erosion proof, dust-proof, shock proof, local protection, etc. It can protect the goods reliably. Firm and reliable, compact packaging, reduce the loss of goods in the logistics process, ensure the safety of goods; goods can be effectively protected, which is particularly important for fragile and valuable goods.
8.Why Choose Us?
1) Over 10 years manufacturer selling
2) Wholesale/ Customize sample/OEM ODM are available
3) Competitive price
4) High product quality ,Strict quality control
5) Intime Delivery: 30-35 working days after receipt of the deposit
6) Best service !
