| Place of Origin: | China |
|---|---|
| Brand Name: | Langji |
| Certification: | CE |
| Model Number: | HEX-80-3 |
| Minimum Order Quantity: | 1 |
| Price: | USD 200-300 |
| Packaging Details: | Carton box |
| Delivery Time: | 20-25 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Heat Transfer: | 80W/K | Voltage: | DC 48V |
|---|---|---|---|
| Rated Power: | 155W | Weight: | 28KGS |
| IP Grade: | IP55 | Dimension(W×D×H): | 410x147.7x800mm |
| Working Temperature: | -40~+60 ℃ | Noise: | 58dB |
| Highlight: | DC48V electrical cabinet heat exchanger,IP55 DC48V electrical cabinet heat exchanger,DC48V CE enclosure heat exchanger |
||

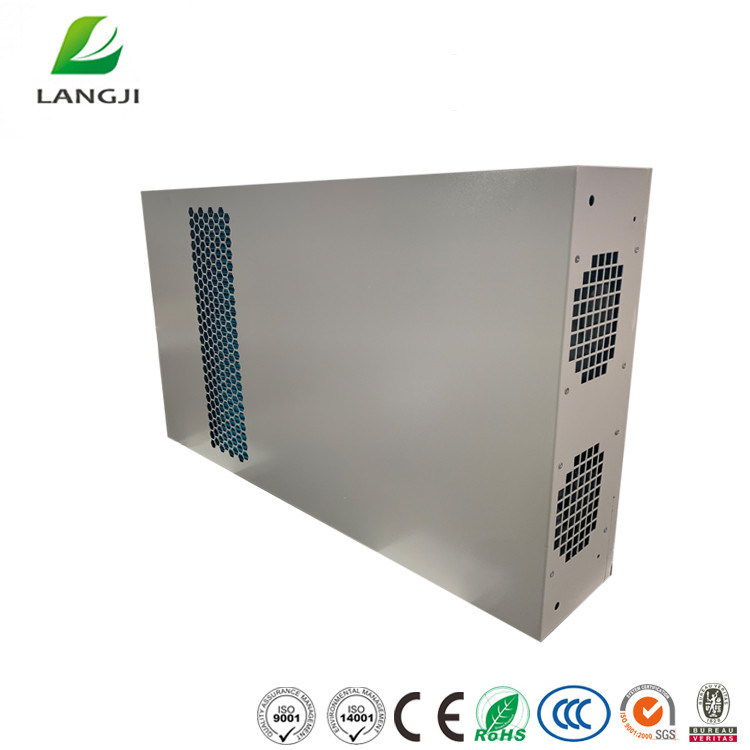

DC 48V Double Fans Electrical Cabinet Heat Exchanger For Cabinet Cooling
Product Introduction
1. Description of cabinet heat exchanger
Cabinet heat exchanger is a device that introduces outdoor natural cold source to exchange heat with limited power consumption. When there is a large temperature difference, the device will effectively exchange heat between hot air inside and cool air outside the cabinet through the aisle of multilayer aluminum heat sink fins, which make the cabinet be an enclosed system with constant temperature so that equipment inside the cabinet can work normally.
2. Data Sheet
| Mode | HEX-80-3 |
| Heat exchange w/k | 80 |
| Rated coltage V | 48VDC |
| Rated power W | 260 |
|
Noise dB |
58 |
| Work temperature ℃ | -40~+60 |
| IP Grade | IP55 |
| Net weight kg | 16 |
3. Product Advantage
4. Application
5. Product details
