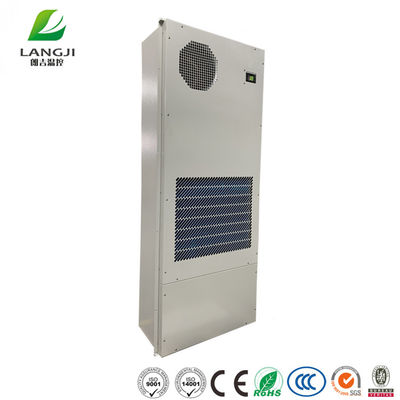

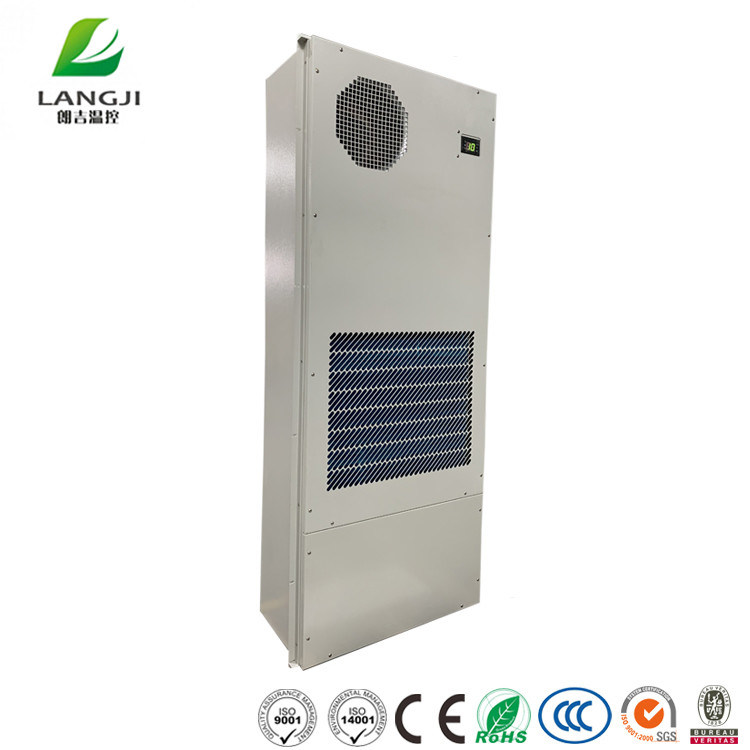

17000BTU Electrical Panel Air Conditioner

Basic Information
Place of Origin: China
Brand Name: Langji
Certification: ISO9001, ISO14001 CE, 3C, IP55
Model Number: SAD150-2
Minimum Order Quantity: 1 pc
Price: USD 200~500/unit
Packaging Details: Wooden case with pallet or just export pallet
Delivery Time: 15~25 working days
Payment Terms: T/T, Western Union, L/C,PayPal
Supply Ability: 1500 pcs / month
Type: Cabinet Cooling Systems Mounting: Door Mount
Operating Voltage: 380/400 VAC Color: RAL7035,OEM
Application: Use For Telecom Cabinet As Cooling Warranty: 1 Year
Function: Cooling Only / Heating & Cooling Power: 5KW
High Light:

17000BTU electrical panel air conditioner


5kW electrical panel air conditioner


SAD150-2 cabinet type ac

17000BTU 5000W AC 380V Powered Outdoor Panel Cabinet Air Conditioner


Langji provides the climate control solution for telecommunication device with precise thermal and humidity control.The internal and external of cabinet air conditioner is IP55 level protected to avoid mositure, water penetrating info inside of enclosure. Applicable for severe ambient environment, such as high temperature,high humidity,high corrosion atmosphere.


* Fit for harsh condition (T3), R134a refrigerant ;
* Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
* LED display, all the settings can changed at the field;
* The heating function is optional; Anti-theft design, without the protection cover.
* Dry contact alarm output, NO/NC optional.

17000BTU Electrical Panel Air Conditioner 0

Model SAD150-2
Cooling capacity(L35/L35) 5000W
Voltage 380VAC±15% 50/60Hz
Rated Power(L35/L35) 1980W
Rated Current 3A
Circuit max pressure 26bar
Refrigerant R134A
Heating Power(Optional) 300W/400W/500W/600W/800W
Working temperature -40~55ºC
Noise 72dB
IP Grade IP55
Dimension(W×D×H) 672×297×1640mm

17000BTU Electrical Panel Air Conditioner 1
