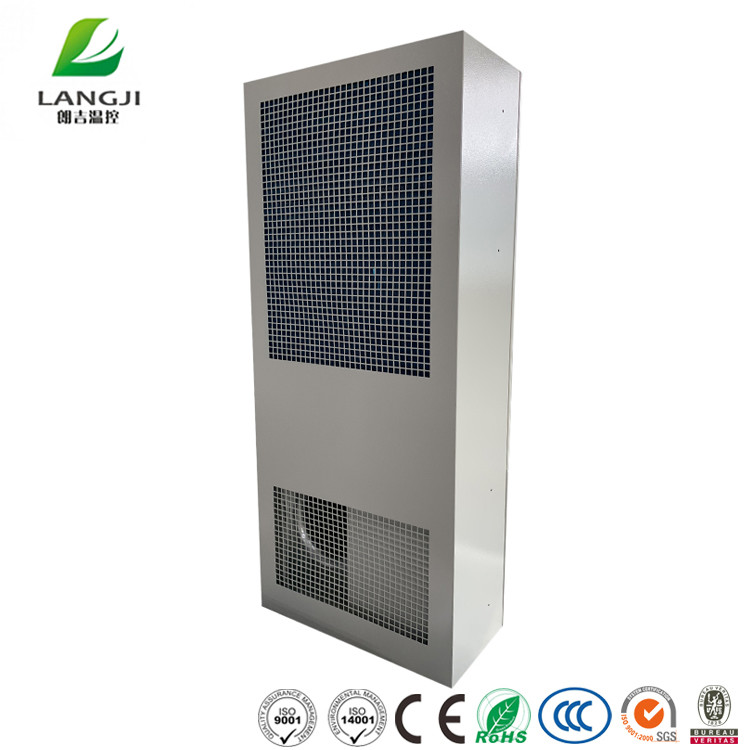

DC 2000W Electrical Enclosure Air Conditioner

Basic Information
Place of Origin: China
Brand Name: Langji
Certification: ISO9001, ISO14001 CE, 3C, IP55
Model Number: SDC120-1
Minimum Order Quantity: 1 pc
Price: USD 200~500/unit
Packaging Details: Wooden case with pallet or just export pallet
Delivery Time: 15~25 working days
Payment Terms: T/T, Western Union, L/C,PayPal
Supply Ability: 5000 pcs / month
Product Name: DC Air-Conditioner Units Application: Telecommunication
Refrigerant: R134a Warranty: 1 Year
Cooling Capacity: 2000W Function: Telecom Cabinet Cooling
Dimension(l*w*h): 460*188*1087mm
High Light:

2kW electrical enclosure air conditioner


SDC120-1 electrical enclosure air conditioner


2000W cabinet air cooler

DC 2000W Industrial Cabinet Air Cooler Electrical Air Conditioner


DC series cabinet air conditioner is a kind of temperature control Equipment applied to cabinets with relatively concentrated heat source. It effectively solve the cabinet heating problem with the advantages of short air duct and uniform air-out. It is the first choice model for the communication industry outdoor base station.


Cooling capacity range: DC48V300W to 2500W
Fit for harsh condition(T3)
LED display, all the settings can be changed at the field.
Anti-theft design
Heating and hydrogen function is optional


Langji DC air conditioner Technical Data Sheet


Model SDC103-1 SDC104-1 SDC105-1 SDC106-1
Cooling capacity(L35/L35) 300W/1000BTU 400W/1350BTU 500W/1700BTU 600W/2000BTU
Voltage DC48V
Power Consumption(L35/L35) 130W 170W 215W 240W
Power Consumption(L35/L55) 160W 210W 280W 280W
Circuit max pressure 26bar
Refrigerant R134a
Working temperature -40~55ºC
Noise 55dB 56dB 56dB 58dB
Weight 16Kg 16Kg 18Kg 23Kg
Dimension(W×D×H) 353x165x583mm 455x155x692mm
Model SDC108-1 SDC110-1 SDC112-1 SDC115-1 SDC120-1
Cooling capacity(L35/L35) 800W/2700BTU 1000W/3400BTU 1200W/4000BTU 1500W/5000BTU 2000W/6800BTU
Voltage DC48V
Power Consumption(L35/L35) 260W 280W 320W 395W 520W
Power Consumption(L35/L55) 320W 380W 420W 490W 630W
Circuit max pressure 26bar
Refrigerant R134a
Working temperature -40~55ºC
Noise 55dB 56dB 58dB 63dB 68dB
Weight 16Kg 36Kg 38Kg 38Kg 45Kg
Dimension(W×D×H) 455x155x692mm 470x187x772mm 499x288x1099mm

2000W DC Installation Drawing
