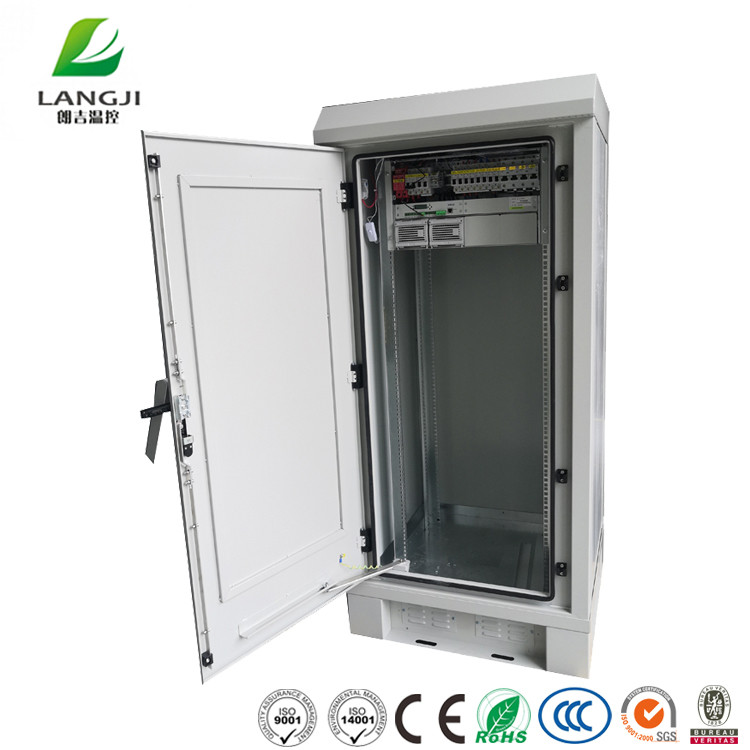

IP65 Outdoor Telecom Cabinet , Waterproof Outdoor BTS Cabinet

Basic Information
Place of Origin: China
Brand Name: Langji
Certification: ISO9001, ISO14001 CE, 3C, IP55
Model Number: OEC1650-2
Minimum Order Quantity: 1 pc
Price: USD 200~500/unit
Packaging Details: Wooden case with pallet or just export pallet
Delivery Time: 15~25 working days
Payment Terms: T/T, Western Union, L/C,PayPal
Supply Ability: 1500 pcs / month
Product Name: Waterproof Telecom Equipment Surface Finish: PANTONE 428C
Ingress Protection: IP55 /IP65 Structure: One Front Door,assembled Structure
Warranty: 1 Year Form Of Sale: OEM & ODM
High Light:

ODM 428C Outdoor Telecom Cabinet


428C Outdoor Telecom Cabinet


IP65 428C Outdoor bts cabinet

30U IP65 IP55 Telecom Outdoor Cabinets Telecommunication Enclosures for BTS


Protect name 30U 19'' Outdoor Telecom Cabinet
External dimension H*W*D 1650*750*750mm,with 150mm height plinth
Internal dimension H*W*D 1400*650*650mm
Material Double wall galvanized steel,thickness of outer plate and  inner plate is 1.0mm.with 50mm EPS or PU heat insulation between the double wall.
Surface Finish PANTONE 428C
Ingress Protection IP55 /IP65
Security design Embedded door, embedded hinges
Door One front door,with door stopper
Cable entry method Cable entries from the bottom of the cabinet
Grounding protection Grounding cooper bar, with enough screws for wiring connection terminals.
Structure Assembled sandwich structure or welded structure.


The cabinet OEC1650-2 is made of galvanized steel and color coated steel.It's price is much more cheaper than all galvanized steel material.

The two side panels and rear panel are made of color coated steel,the plinth and roof and 19'' inch rack and base are all made of galvanized steel.We can supply different telecommunication solutions for customer's different telecom projects.

It's our standard dimension,we also support customize size of the cabinets according to customer's specific requirements.


Cabinet cooling:

If the ambinet temperature is not high,and the heat generated by the equipments inside the cabinet is not large,we can choose high speed emergency fan as cabinet cooling,venting holes are on the bottom of the cabinet,the air flows vertical and let cool air in,heat air out of the cabinet.

The fan is connected with temperature sensor,it will start working when the temperature inside at 35 ℃.


Cabinet drawing:

IP65 Outdoor Telecom Cabinet , Waterproof Outdoor BTS Cabinet 0
