Product Name: | Cabinet Air Conditioner | Cooling Capacity: | 500w |
---|---|---|---|
Rated Power: | 320w | Power Supply: | 220VAC±15% 50/60Hz |
Working Temperature: | -40 ℃ - 55 ℃ | Refrigerant: | R134a |
IP Grade: | IP55 | Certificate: | CE CCC |
High Light: | ODM cabinet air conditioner,CE cabinet air conditioner,500W Cabinet AC Unit |

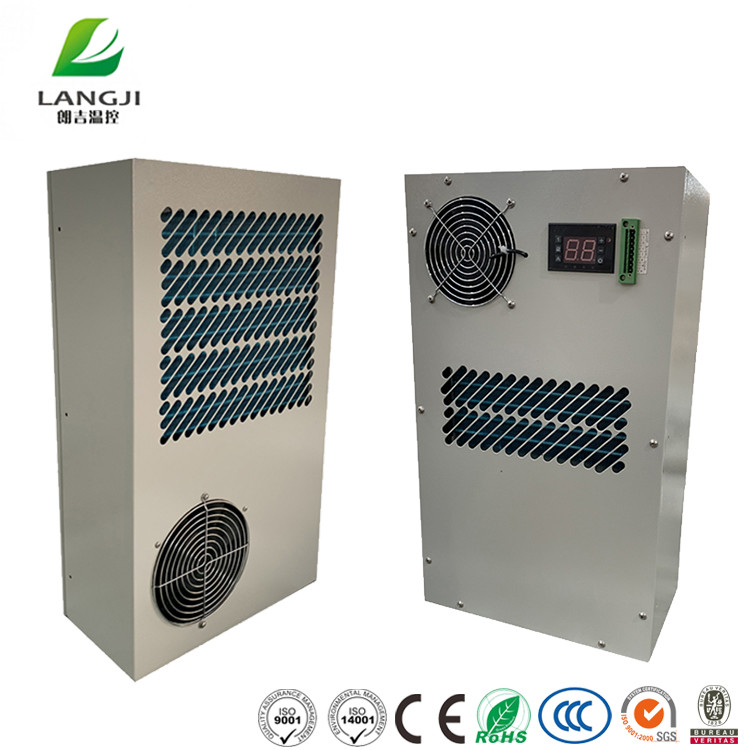

Energy efficient 500w cabinet air conditioner
Product Introduction
1. Description of cabinet air conditioner
Cabinet air conditioner is actively cooling with compressor, and it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.
2. Data Sheet
Model | SAD105-2 |
Cooling capacity(L35/L35) | 500W |
Voltage | 220VAC±15% 50/60Hz |
Rated Power(L35/L35) | 320W |
Rated Current | 1.5A |
Circuit max pressure | 26bar |
Refrigerant | R134a |
Heating Power(Optional) | 500W |
Working temperature | -40~55℃ |
Noise | 55dB |
Weight | 16Kg |
IP Grade | IP55 |
Dimension(W×D×H) | 353×165×583mm |
3. Product Advantage
1) Good design, stable structure and easy maintenance.
4. Application
1) Outdoor telecom cabinet
5. Product details
