| Place of Origin: | China suzhou |
|---|---|
| Brand Name: | Langji |
| Certification: | CE/ISO14001/ISO9001/3C/SGS |
| Model Number: | OMC1915-1 |
| Minimum Order Quantity: | 1 |
| Price: | $ 300-1000 set |
| Packaging Details: | wooden pallet+Wooden case |
| Delivery Time: | 10-15 working days |
| Payment Terms: | Western Union |
| Supply Ability: | 100000 sets per Year |
| Product Name: | Telecommunication Cabinet | Material: | Galvanized Steel |
|---|---|---|---|
| Usable Space: | 50U | Cooling System: | AC500W Air Conditioner*2 |
| IP Grade: | IP55 | Lock System: | 4-point Security |
| Color: | RAL7035 Powder Coated Painting | Dimension: | 1900mm*900mm*2100mm |
| High Light: | 50U telecommunication enclosure,Double Bay 50U telecommunication enclosure,Langji IP55 telecom outdoor cabinets |
||

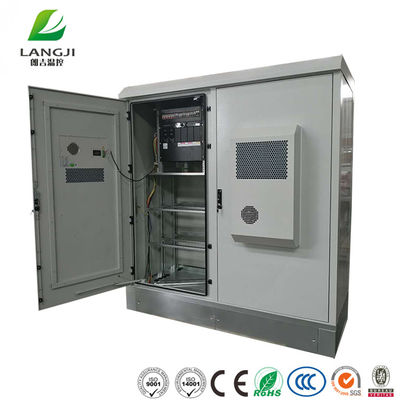

50U double bay telecommunication cabinet
1. Description of telecommunication cabinet
The telecommunication cabinet is designed to house a variety of batteries and equipment, they provide protection from vandalism, dust, rain, snow and dripping water. It is divided into double bay space, left bay is for VRLA batteries and DC power system, right bay is for telecom equipment. Both bays are cooled by 1500w cabinet air conditioner.
2. Data Sheet
| Model | OMC1915-1 |
| Internal Dimension(H*W*D) | 1800*1800*800MM |
| External Dimension(H*W*D) | 2100*1900*900MM |
| Internal space | Left bay 3 VRLA battery shelves and 10U 19” rack, right bay 40U 19” rack |
| Brand Name | Langji |
| Certification | ISO9001/ISO14001/CE/IP55/CCC |
| Material | Galvanized steel/Aluminum/ |
| stainless steel/Color coated steel | |
| Color | RAL7035 GREY/Pantone428C/Custom |
| Door | Front double doors |
| Structure | Welded/Frame/Assembly |
| Hinge | Embedded |
| Lighting | 48V LED Lamp |
| Lock | 4 point security lock |
| Equipment installation method | 19’’ rack |
| Cable enter method | Bottom of the cabinet |
| Cooling | 1500W DC48V |
| (options AC220V/110V 60HZ) | |
| Working temperature | -40～55℃ |
| IP Grade | IP55/IP65/IP56 |
| Grounding protection | Cooper bar |
| MOQ | 1 Unit |
| Package | Wooden case/ export pallet |
| Payment | T/T,L/C,Western Union |
| Warranty | 1 Year |
| Delivery time | 15~20 working days |
3. Product Advantage
· Sandwich panel construction
· Attractive powder coat finish
· 19’’ or 23’’ adjustable rack
· Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
· IP55 cabinet, walls and roof in double steel with high quality insulation
· Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
· High performance Air-conditioning unit for heat removal
· Door stopper to hold door open at service
· Pass earthquake intensity 8 anti-seismic performance test
· Support custom-made
4. Application
· Telecommunication
· Wireless/Broadband
· Base station
· Solar based installations
· Wireless cell sites & switches
· Transmission terminals
· Data and Control
· Transportation
5. CAD drawing
