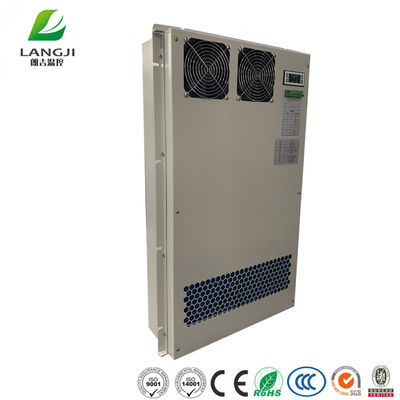

120W/K IP55 Cabinet Heat Exchanger For Telecom Cabinet

Basic Information
Place of Origin: China
Brand Name: Langji
Certification: CE
Model Number: HEX-120
Minimum Order Quantity: 1
Price: USD 200-300
Packaging Details: Carton box
Delivery Time: 20-25 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10000 pcs per month
Heat Transfer: 120W/K Voltage: 220VAC±15% 50Hz
Rated Power: 330W Noise: 62dB
Weight: 28KGS IP Grade: IP55
Dimension(W×D×H): 1237x410x154
High Light:

Langji IP55 Cabinet Heat Exchanger


CE Langji Cabinet Heat Exchanger


Cabinet Energy Saving heat exchanger

Energy Saving Competitive Price IP55 Cabinet Heat Exchanger For Telecom Cabinet


Product Introduction


Cabinet heat exchanger is a device that introduces outdoor natural cold source to exchange heat with limited power consumption. When there is a large temperature difference, the device will effectively exchange heat between hot air inside and cool air outside the cabinet through the aisle of multilayer aluminum heat sink fins, which make the cabinet be an enclosed system with constant temperature so that equipment inside the cabinet can work normally.


Product Feature




1. Outdoor telecom cabinet

2. Outdoor battery cabinet

3. Electrical cabinet

4. Industrial control cabinet


120W/K IP55 Cabinet Heat Exchanger For Telecom Cabinet 0


120W/K IP55 Cabinet Heat Exchanger For Telecom Cabinet 1


Data Sheet


Model Heat Transfer (W/K) Rated Voltage (V/ph/Hz) Rated Power (W) Air Circuit (m³/h) HxWxD (mm) Weight (Kgs)
HEX-50 50 220/1/50 120 400 750x411x118 20
HEX-60 60 220/1/50 190 500 750x411x118 20
HEX-80 80 220/1/50 260 800 1177x410x154 25
HEX-100 100 220/1/50 260 900 1177x410x154 25
HEX-120 120 220/1/50 330 1100 1237x410x154 28
HEX-150 150 220/1/50 330 1300 1358x555x195 34
HEX-200 200 220/1/50 360 2000 1520x600x198 38
