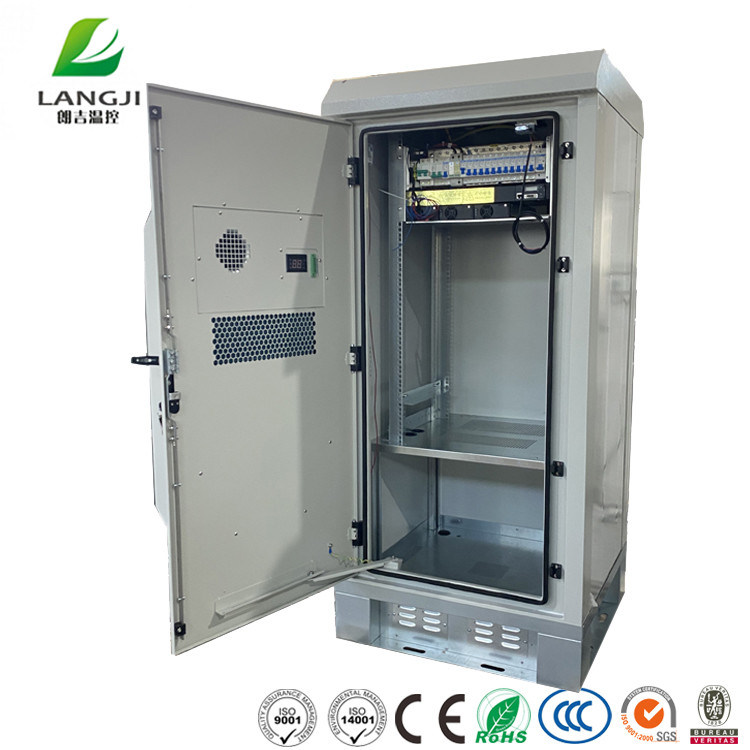

Integrated Metal Waterproof Server Cabinet

Basic Information
Place of Origin: China suzhou
Brand Name: Langji
Certification: CE/ISO14001/ISO9001/3C/SGS
Model Number: LAJ-OI1400
Minimum Order Quantity: 1
Price: $ 300-1000 set
Packaging Details: wooden pallet+Wooden case
Delivery Time: 10-15 working days
Payment Terms: Western Union
Supply Ability: 100000 sets per Year
Protection Level: IP55 / IP65/NEMA Material: Galvanized Steel
Type: Telecom Outdoor Cabinet External Size: 750mm*750mm*1650mm(W*D*H)
Color: RAL7035 GREY Product Name: Outdoor Telecom Cabinet
Size: We Can Customize As Your Request Application: Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom
Cooling System: 1500W 220VAC Compressed Air Conditioner Warranty: 1 Year
Surface: Plating Structure: Double Wall With Heat Insulation
Weight: 240kg Surface Finish: Powder Coating
High Light:

1500w waterproof server cabinets


SGS waterproof server cabinet


SGS IP65 outdoor server cabinet

1500w Power Solution Integrated Metal Enclosure Outdoor Integrated Cabinet Ip65 Ip55



1.Technical Data Sheet


1.1 Structure
Internal Dimension(H*W*D) :Standard 1427 *650*650mm or any customized size
External Dimension(H*W*D) : Standard 1650*750*750mm or any customized size

1.2 Material:Materials are Galvanized steel with 45mm thickness EPS insulation

1.3 Layout : one compartment equipment cabinet+one compartment

1.4 Door : one door with special lock for outdoor cabinet (support padlock)

1.5 Cable enter method :Bottom φ50*5 or customer requirement.

1.6 Temperature Control Cooling :1500w 220VAC air conditioner

1.7 way of communication:RS485

1.8 Power supply system

1.9 working temperature:-40℃~+55℃



2. Available dimension and material

Width available:600mm,650mm,700mm,750mm,800mm,850mm,900mm or any customized size
Depth available:600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1000mm or any customized size
Internal capacity: 18U,22U ,27U,30U,32U,35U,37U,40U,42U etc (based on customers requirements)

Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)



3. Detailed Picture

Integrated Metal Waterproof Server Cabinet 0

4. Cooing system

1500W 220VAC air conditioner installed on the front door

Integrated Metal Waterproof Server Cabinet 1 Integrated Metal Waterproof Server Cabinet 2

5. Power supply system

Integrated Metal Waterproof Server Cabinet 3

5. Company profile

Integrated Metal Waterproof Server Cabinet 4 Integrated Metal Waterproof Server Cabinet 5
Integrated Metal Waterproof Server Cabinet 6 Integrated Metal Waterproof Server Cabinet 7
Langji Technology Co., Ltd. was founded in 2009, it is a high-tech enterprise with R&D, manufacturing and sales department. It is ocated at the coast of Taihu Lake Suzhou city, the registered capital is 50 million RMB. The whole factory covers 5000 square meters and employs about 200 people with an annual sale of nearly 100 million RMB.
Langji company provides full range of temperature control products and solutions for
- Telecommunication
- Data Center
- Base station
- Solar based installations
- Wireless cell sides & switches
- Industry Automation
- Energy Storage
Suzhou Langji Technology Co., Ltd. is always taking the concept of "well-grounded, ambitious and make all efforts to create national brand of precision air conditioner", holding 3 point management strategy that includes technique, force, and service,tracking the market trend and focusing on the development of products. Based on strong technical force, and advanced design ideas,Langji has promoted many models of precision air condition, heat exchanger, and energy-saving products for base station or equipment room, outdoor communication equipment cabinet and thermostatical battery cabinet etc. to meet the diversified needs of the domestic and overseas customers.

6.Related Product

Integrated Metal Waterproof Server Cabinet 8


Integrated Metal Waterproof Server Cabinet 9


Integrated Metal Waterproof Server Cabinet 10
